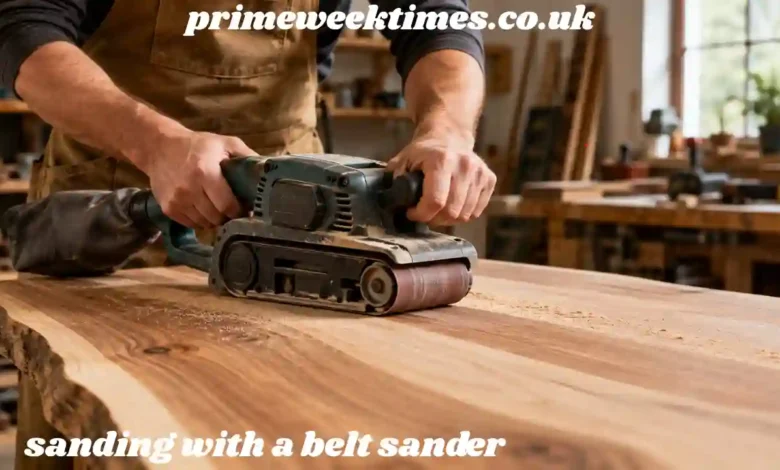

Sanding With a Belt Sander: A Complete Guide for Smooth, Professional Results
Sanding is one of the most important stages in woodworking, furniture restoration, flooring preparation, and many home improvement projects. A beautifully finished piece of wood often depends less on the final coat of paint or stain and more on how carefully the surface was prepared beforehand. Among the many sanding tools available, a belt sander stands out because of its speed, strength, and ability to remove large amounts of material in a relatively short period of time. For anyone working on broad wooden surfaces, learning the correct method of sanding with a belt sander can make difficult jobs much faster while also producing a cleaner and more professional result.
A belt sander uses a continuous loop of abrasive sanding material that moves rapidly around two rollers. Unlike hand sanding, where the abrasive moves only as fast as the operator can move it, a belt sander performs thousands of abrasive movements in a short period. This makes it particularly useful for removing old finishes, flattening uneven boards, smoothing rough timber, reducing high spots, and preparing larger surfaces for additional sanding. However, this power also means that poor technique can quickly create dips, scratches, rounded edges, or uneven patches.
Successful sanding with a belt sander is therefore not simply a matter of switching on the machine and moving it across a board. The operator needs to understand sandpaper grit, grain direction, pressure, sanding patterns, tool control, dust collection, and surface inspection. Using the correct technique allows the sander to do the hard work without damaging the material underneath.
This detailed guide explains how a belt sander works, where it performs best, how to choose sanding belts, how to prepare a project, and how to achieve a smooth and consistent surface while avoiding common mistakes.
What Is a Belt Sander?
A belt sander is a power sanding tool that uses a loop-shaped abrasive belt stretched around two rotating drums or rollers. When the motor operates, one roller drives the sanding belt continuously around the machine. The moving abrasive surface contacts the material being sanded and quickly removes fibers, coatings, paint, varnish, filler, or other surface material.
Most handheld belt sanders have a flat sanding area beneath the belt. This section is usually called the platen. The platen helps keep the sanding belt relatively flat against the workpiece so material can be removed evenly.
Belt sanders are commonly available in several belt sizes. Larger machines usually cover more surface area and remove material quickly, while smaller models can be easier to control on furniture, shelves, doors, and smaller boards.
Because the abrasive belt moves continuously in one direction, belt sanders are generally more aggressive than orbital sanders, detail sanders, or hand sanding blocks. They are excellent for the early stages of surface preparation but may need to be followed by finer sanding methods when an extremely smooth finish is required.
Why Sanding With a Belt Sander Is So Effective
The biggest advantage of sanding with a belt sander is speed. A large rough board that could require considerable effort with hand sanding may be leveled quickly with a belt sander. This efficiency becomes especially noticeable on projects involving large tables, doors, workbenches, wooden floors, beams, or reclaimed timber.
Belt sanders are particularly useful when a surface is uneven. Raised areas can be reduced rapidly until they are closer to the surrounding level. They can also remove rough saw marks, old paint, stubborn varnish, glue residue, and other imperfections that would take much longer to remove manually.
Another benefit is consistency. Once an operator develops good control, a belt sander can produce an evenly prepared surface across a large area. Instead of spending hours manually sanding one section at a time, the operator can maintain continuous movement across the workpiece.
However, the same aggressive sanding action that provides these advantages can become a disadvantage when the tool is used carelessly. A belt sander can remove more material than expected within seconds. Proper technique is therefore essential.
When Should a Belt Sander Be Used?
A belt sander works best during heavy or medium material removal. It is particularly useful when a surface needs substantial correction before fine finishing begins.
Common projects include flattening rough lumber, smoothing large boards, removing old coatings from wooden furniture, preparing doors for refinishing, leveling glued panels, sanding decking boards, removing raised grain, reducing filler, and preparing wooden floors.
The tool is also useful when working with reclaimed wood. Older boards may contain weathered fibers, stains, scratches, previous coatings, or irregular surfaces. A belt sander can remove the damaged outer layer and reveal cleaner material underneath.
Nevertheless, belt sanders are not ideal for every situation. They can be too aggressive for delicate veneers, highly detailed furniture, narrow moldings, curved decorative sections, or very thin material. For those projects, an orbital sander, detail sander, sanding sponge, or hand sanding block may offer better control.
Choosing the Correct Sanding Belt Grit
Choosing the right abrasive grit is one of the most important parts of sanding with a belt sander. Sandpaper grit refers to the size of the abrasive particles attached to the sanding belt.
Lower grit numbers indicate larger and more aggressive abrasive particles. Higher numbers indicate smaller particles that produce a finer surface.
Very coarse grits such as 36 or 40 grit are designed for aggressive material removal. They may be useful for extremely rough timber, thick paint layers, uneven flooring, or heavily damaged surfaces. However, these grits can leave deep scratches and should be used carefully.
Around 60 grit is commonly used for heavy sanding and initial surface leveling. It removes imperfections quickly while generally producing shallower scratches than extremely coarse abrasives.
Around 80 grit offers a useful balance between material removal and surface refinement. It is often suitable for general woodworking preparation.
Around 100 or 120 grit can be used when the surface is already reasonably smooth and only moderate refinement is required.
Finer belts such as 150 grit or higher may be used for additional smoothing, although many woodworkers prefer switching to an orbital sander or hand sanding during the final finishing stages.
The ideal grit progression depends on the condition of the material. Starting with an unnecessarily coarse belt may create deep scratches that require additional sanding later.
Preparing the Work Area Before Sanding
Good preparation makes sanding with a belt sander safer and more efficient. Before switching on the tool, the workpiece should be placed on a solid, stable surface.
Boards and furniture components should be secured so they cannot slide or rotate during sanding. Clamps can be useful, although they should be positioned where they will not interfere with the sanding path.
The surface should also be inspected carefully for exposed nails, screws, staples, or other metal objects. A sanding belt hitting metal may tear, produce sparks, or damage the sander. Any exposed fasteners should be removed or driven below the surface where appropriate.
The surrounding area should be cleared of unnecessary objects. Belt sanders generate considerable dust, particularly during heavy sanding. Good ventilation and effective dust collection can significantly improve working conditions.
Before beginning, the sanding belt should also be checked to make sure it is correctly installed and properly tracked.
Understanding Belt Tracking
Belt tracking describes the position of the sanding belt as it moves around the rollers. If tracking is incorrect, the belt may drift toward one side of the machine.
Most belt sanders have a tracking adjustment control. After installing a new sanding belt, the machine should be briefly operated while observing the belt position. The tracking adjustment can then be used to keep the belt centered.
A belt that moves too far sideways may rub against the sander housing or partially leave the rollers. Correct tracking protects the abrasive belt, the machine, and the workpiece.
Tracking should be checked whenever a new sanding belt is installed because different belts may behave slightly differently.
How to Hold a Belt Sander Correctly
Control is essential when sanding with a belt sander. Most handheld belt sanders have a rear handle and a front grip. Using both hands provides better stability and helps prevent sudden movement.
The operator should maintain a comfortable stance with balanced footing. The power cord, if the tool is corded, should remain behind the work area so it cannot become trapped under the sander.
The machine should be controlled firmly without squeezing the handles excessively. Good control comes from guiding the tool rather than forcing it downward.
When possible, the sander should be started before the abrasive belt contacts the surface. Once the belt reaches normal operating speed, the machine can be lowered gently onto the workpiece.
Let the Weight of the Machine Do the Work
One of the most common mistakes when sanding with a belt sander is applying excessive downward pressure.
Belt sanders are already designed to remove material aggressively. In many situations, the natural weight of the machine provides enough pressure for effective sanding. Additional force may cause the belt to dig into the wood and create uneven areas.
Heavy pressure can also slow the motor, increase heat, wear out sanding belts faster, and make the machine more difficult to control.
Instead of pushing downward, the operator should focus on keeping the tool flat and moving smoothly across the surface.
If material is not being removed quickly enough, changing to a coarser sanding belt may be more effective than pressing harder.
Sanding in the Direction of the Wood Grain
Wood contains natural fibers that generally run along the length of a board. Their direction is referred to as the grain.
When possible, sanding with a belt sander should follow the grain direction. Sanding across the grain can create visible scratches that become especially noticeable after stain or clear finish is applied.
For long boards, the sander can be moved in smooth passes from one end toward the other while remaining generally parallel with the grain.
Some leveling situations may require diagonal passes initially, especially when removing high areas from a wide surface. If diagonal sanding is used, the surface should later be sanded with the grain to reduce cross-grain scratches.
Keep the Belt Sander Moving
A belt sander should rarely remain stationary while contacting the workpiece.
Because the abrasive belt moves rapidly, leaving the tool in one place can create a depression almost immediately. These dips may be difficult to remove because the surrounding material must then be sanded down to match the low area.
Continuous movement is therefore one of the most important principles of sanding with a belt sander.
The movement should be controlled and steady rather than rushed. Each pass should overlap slightly with the previous pass to maintain consistent material removal.
Imagine mowing a lawn in organized strips. A similar systematic approach can help produce uniform sanding coverage.
Avoid Tilting the Sander
Keeping the sander flat is extremely important.
Tilting the machine forward, backward, or sideways concentrates pressure on a smaller part of the sanding belt. This concentrated pressure can cut into the surface and create grooves or rounded areas.
Operators sometimes tilt the sander intentionally when trying to remove a stubborn mark quickly. Although this may appear effective initially, it often creates a larger surface problem.
It is usually better to make several controlled passes with the sander flat than to attack one small area aggressively.
Be Careful Around Edges
Edges require special attention during sanding with a belt sander.
As the machine approaches the edge of a board, part of the sanding surface may extend beyond the workpiece. If the operator allows the sander to tip, the edge can become rounded very quickly.
This can be particularly noticeable on tabletops, doors, shelves, and cabinetry where straight edges are important.
The operator should maintain full control as the tool approaches the edge and avoid allowing the weight of the machine to pull downward beyond the workpiece.
For delicate edge work, hand sanding or a smaller finishing sander may provide better precision.
Using Multiple Sandpaper Grits
A professional-looking finish usually comes from gradually refining the surface rather than trying to achieve everything with one sanding belt.
Suppose a rough board begins with 60-grit sanding. This stage removes significant imperfections but leaves visible scratches. Moving directly from 60 grit to extremely fine sandpaper may require unnecessary time because the fine abrasive must remove all of those deep scratches.
Instead, a gradual progression might move from 60 grit to 80 grit, then 120 grit, followed by finer sanding if required.
Each successive grit removes the scratches created by the previous one while creating smaller scratches of its own.
The result becomes progressively smoother.
How to Sand a Large Flat Surface
Large flat surfaces are among the best applications for sanding with a belt sander.
Begin by inspecting the entire area and identifying high spots, old coatings, scratches, glue residue, or uneven sections.
Choose the appropriate starting grit based on the condition of the material. Start the sander and lower it gently onto the surface.
Move in long, controlled passes following the grain whenever practical. Slightly overlap each pass so no narrow unsanded strips remain.
Avoid focusing too much on one area unless it is clearly higher than the surrounding surface. Even then, use repeated light passes rather than holding the machine stationary.
Periodically stop sanding and examine the surface from different angles. Side lighting can help reveal scratches, dips, and uneven areas that may not be visible from directly above.
Once the major imperfections are removed, move to a finer grit and repeat the process.
Sanding Painted or Finished Wood
A belt sander can be highly effective for removing paint, varnish, and other finishes from wooden surfaces.
However, old finishes may clog sanding belts more quickly than bare wood. Heat generated during sanding can also soften some coatings, causing them to collect on the abrasive surface.
Start with a grit appropriate for the thickness and hardness of the coating. Heavy finishes may require coarse abrasive, while thin coatings may need only moderate grit.
Move the tool continuously and avoid overheating one area.
As the finish disappears and bare wood becomes visible, switching to a finer sanding belt can help prevent unnecessary damage to the wood surface.
Extra care should be taken when sanding furniture that may have thin veneer layers. Aggressive sanding can quickly pass through veneer and expose the substrate underneath.
Dust Control During Belt Sanding
Sanding generates fine airborne particles that can spread throughout a workshop.
Many belt sanders include a dust bag or a connection for a vacuum system. Using effective dust collection improves visibility, keeps the sanding belt cleaner, and reduces the amount of dust settling on nearby surfaces.
The dust bag should be emptied regularly because an overfilled bag reduces collection efficiency.
Even with dust extraction, appropriate respiratory protection can be important, especially during extended sanding sessions.
Eye protection also helps protect against dust and small particles that may become airborne.
A cleaner work area makes it easier to inspect the surface and identify remaining defects.
How to Know When Sanding Is Complete
Knowing when to stop is an important skill.
The goal is not to continue sanding simply because the machine is available. Excessive sanding wastes material and may change the shape or dimensions of the project.
After each sanding stage, the surface should be inspected carefully. Run a hand lightly over the wood to feel for raised areas, scratches, or irregularities.
Viewing the surface under light coming from the side can reveal defects that overhead lighting may hide.
If the surface looks consistently sanded and the scratches from the previous grit have disappeared, it is usually ready for the next grit.
When the final desired smoothness has been achieved, sanding should stop.
Common Mistakes When Sanding With a Belt Sander
Several mistakes can reduce the quality of the finished surface.
The first is using excessive pressure. Heavy pressure makes the machine more aggressive and increases the risk of uneven sanding.
Another mistake is leaving the sander in one place. Even a short pause may create a visible depression.
Tilting the machine is another frequent problem. The belt should remain flat against the workpiece unless a specific controlled technique requires otherwise.
Using sandpaper that is too coarse can also create unnecessary work. Deep scratches may take several additional sanding stages to remove.
Skipping too many grit levels can produce similar problems. Gradual grit progression usually creates smoother results more efficiently.
Ignoring belt tracking is another mistake. Poorly tracked belts can damage the machine and reduce sanding accuracy.
Finally, sanding across the grain without correcting the resulting scratches can cause visible marks after finishing.
Belt Sander Versus Orbital Sander
Belt sanders and orbital sanders serve different purposes.
A belt sander is designed mainly for fast material removal. It works well on large, relatively flat surfaces where substantial sanding is required.
An orbital sander removes material more slowly but usually provides greater control and a finer finish.
For many woodworking projects, both tools can be used together.
The belt sander performs the heavy preparation. Once the surface becomes reasonably flat and smooth, an orbital sander can refine the finish.
Final hand sanding may then be used before stain, oil, varnish, paint, or another coating is applied.
This combination provides both speed and precision.
Maintaining a Belt Sander
Regular maintenance improves performance and extends the life of the tool.
Sanding dust should be removed from ventilation openings so the motor can cool properly.
The sanding belt should be inspected regularly for tears, excessive wear, clogged abrasive, or damaged edges.
A worn belt usually sands more slowly and may generate unnecessary heat.
Rollers should remain clean so the belt tracks properly.
The power cord, switches, handles, and dust collection components should also be inspected periodically.
Before making adjustments or replacing sanding belts, the tool should be disconnected from its power source.
Improving Results on Woodworking Projects
High-quality sanding with a belt sander depends on patience and consistency.
Before beginning, identify exactly what the sanding stage needs to accomplish. If the surface only requires light smoothing, an aggressive coarse belt may not be necessary.
Use the least aggressive grit that can complete the required work efficiently.
Work systematically across the entire surface instead of randomly moving between different areas.
Check progress regularly rather than waiting until the entire project has been sanded.
When changing grits, remove sanding dust from the workpiece so loose abrasive particles from the previous grit do not create unexpected scratches.
Finally, remember that the belt sander is usually a preparation tool rather than the final finishing tool. Switching to a finer sanding method at the appropriate time often produces the best overall result.
Sanding With a Belt Sander for Furniture Restoration
Furniture restoration is another common application.
Old tables, benches, cabinets, and wooden chairs may have several layers of finish, scratches, stains, and surface damage accumulated over many years.
A belt sander can remove damaged coatings quickly from broad flat sections such as tabletops and cabinet panels.
However, care is essential because furniture components may be thinner than construction lumber. Some pieces may also use decorative veneers that can be damaged easily.
Begin conservatively and inspect the surface frequently.
Areas near corners, decorative edges, carvings, or thin sections may be better handled with hand tools or smaller sanders.
When used carefully, a belt sander can dramatically reduce the time required to restore large flat furniture surfaces.
Sanding With a Belt Sander on Flooring
Belt sanders are often associated with flooring because large wooden floors require significant material removal.
Floor sanding machines are usually larger and more powerful than handheld models, but the basic principle remains similar.
The machine removes old finish and levels uneven wood while progressing through increasingly finer abrasive grits.
Floor sanding requires particularly careful control because uneven movement can create visible depressions across a large surface.
Edges and corners often require separate sanding equipment because the main belt sanding machine cannot reach directly against walls.
Although the tools may differ in size, the importance of steady movement, correct grit selection, and gradual sanding remains the same.
Safety Tips for Sanding With a Belt Sander
Safe working habits are essential whenever a powerful sanding tool is used.
Eye protection should be worn to reduce the risk of dust or debris entering the eyes.
Hearing protection may be appropriate because belt sanders can produce significant noise.
Dust masks or suitable respirators can help reduce exposure to fine particles.
Loose clothing, jewelry, and long hair should be kept away from the moving sanding belt.
Hands should never be placed near the abrasive belt while the tool is operating.
The workpiece should remain firmly secured, especially when sanding smaller boards.
When sanding older painted surfaces, additional caution may be necessary because some historical coatings may contain hazardous materials.
Following safe operating practices protects both the operator and the quality of the project.
Frequently Asked Questions About Sanding With a Belt Sander
Can a belt sander make wood completely smooth?
A belt sander can make wood considerably smoother, but its main strength is rapid material removal. For furniture-quality finishes, it is common to follow belt sanding with an orbital sander or hand sanding using finer abrasives.
What grit should be used first?
The starting grit depends on the surface condition. Very rough wood may require 40 or 60 grit, while moderately rough material may begin around 80 grit. Surfaces needing only light smoothing may start with finer abrasive.
Should pressure be applied while sanding?
Usually only light guiding pressure is necessary. The weight and power of the machine often provide enough force. Excessive pressure may cause uneven sanding.
Can a belt sander remove paint?
Yes. Belt sanders can remove many types of paint and finish efficiently from flat wooden surfaces. The appropriate grit depends on the coating thickness and condition.
Should sanding follow the wood grain?
Whenever practical, yes. Sanding with the grain reduces the chance of noticeable cross-grain scratches.
Why does the sanding belt keep moving sideways?
The belt tracking may need adjustment. Most belt sanders have a tracking control that allows the belt to be centered on the rollers.
Can a belt sander be used on edges?
It can, but edges require careful control. The machine can round edges very quickly if allowed to tilt.
Final Thoughts on Sanding With a Belt Sander
Learning sanding with a belt sander can transform the way large woodworking and renovation projects are handled. The tool offers powerful material removal, fast surface preparation, and excellent efficiency when working on broad, flat areas. Rough lumber, old finishes, uneven boards, doors, tabletops, flooring, and many other surfaces can be prepared much faster than they could be using manual sanding alone.
The key to successful sanding with a belt sander is control rather than force. Choosing the right abrasive grit, allowing the weight of the machine to perform much of the work, maintaining continuous movement, keeping the sander flat, and working with the wood grain all contribute to better results. Regular surface inspection and gradual grit progression further improve smoothness while reducing the risk of visible scratches.
A belt sander is powerful enough to correct major surface problems, but that same power means mistakes can happen quickly. Holding the machine stationary, pressing too hard, tilting the sanding belt, or using unnecessarily coarse abrasive can remove more material than intended. Developing a steady technique allows the operator to take advantage of the machine’s speed without sacrificing accuracy.
For many projects, the best approach is to use the belt sander for the heavy work and then switch to finer sanding methods for finishing. This combination provides a practical balance between efficiency and surface quality.
With proper preparation, careful movement, correct grit selection, good dust control, and regular inspection, sanding with a belt sander can become one of the most useful techniques in woodworking and home improvement. Whether preparing a simple board or restoring a large wooden surface, understanding how to control the tool makes it possible to achieve smoother, flatter, and more professional-looking results.
ALSO READ : Lawn Fertiliser and Grass Rolls: Tips for a Healthy Green Lawn
